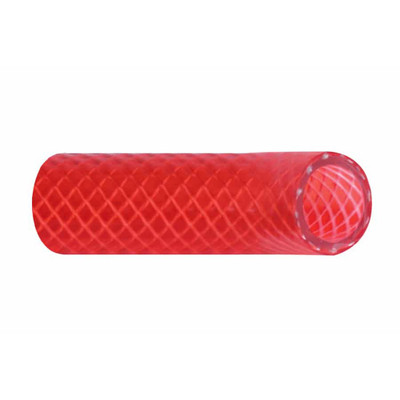

Trident Marine 1/2" Reinforced PVC (FDA) Hot Water Feed Line Hose - Drinking Water Safe - Translucent Red - Sold by the Foot [166-0126-FT]

1/2" Reinforced PVC (FDA) Hot Water Feed Line Hose - Drinking Water Safe - Translucent Red - Sold by the Foot

Trident 166 Series Red - polyester reinforced PVC hose for "Hot Water" feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures of up to 149ºF (65ºC) and can handle pressures to a maximum of 250 psi (varies based on i.d size).

Features:

• Sold by the foot
• The Red cover allows for easy identification of "Hot Water" lines on your boat
• Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility
• This hose is safe for use with drinking water

Application:

• Perfect for hot, pressurized applications, hot water feed, drains, and vent lines

Construction:

• Tube & Cover: Clear FDA tube
• Color: Red Transparent
• Reinforcement: Polyester
• Temperature Range: -18°F to 149°F (-28°C to 65°C)

Specifications:

• Inner Diameter: (inch) 1/2" / (mm) 12.7
• Outer Diameter: (inch) .777 / (mm) 19.6
• Working Pressure: (PSI Vac In./Hg) 250 / (bar) 17
• Bend Radius: (inch) 0.98" / (mm) 25

*Burst Pressure is 4 x Working Pressure

Specifications:

• ID Diameter (inches): 1/2"
• Box Dimensions: 1"H x 1"W x 6"L WT: 0.15 lbs
