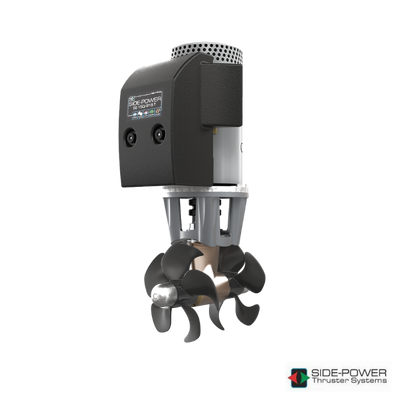

SE150/215T 24V Side-Power Tunnel Thruster
The SE150/215T-24V meets the requirements of the modern yachts high power in a compact tunnel diameter. The SE150/215T-24V is our most powerful alternative for the compact 215mm tunnel diameter. The SE150/215T-24V includes all the important and unique Side-Power features and qualities - why settle for less?
Technical Information:
|
Thrust at 10.5V* (kg/lbs) |
150/330 |
Intelligent Power Control
The Side Power unique thruster controller that intelligently protects the thruster from potential inherent problems in all high current applications as well as user faults. It includes several important safety between drive directions
- Monitors solenoid functions to reduce the chance of solenoid lock-in
- Will stop the thruster in case of a locked in solenoid, without extra user action and even without controlling a main switch.
Q-prop™
The new 5 blade special skew propellers are the result of over 2 years of development work and thousands of tests. They have been designed to reduce the noise level, while maintaining the exceptional efficiency of the old 4 blade Side-Power propellers. This goal was achieved, and we even chose to make them a little bit more aggressive on some models, increasing the thrust on some thrusters about 5%. Please see individual information on each new thruster for more details.
- Noise reductions of up to 75% measured in controlled environments
- The expected and tested normal noise reduction in average installations: 20-40%
- Will be delivered on all Side-Power models except models with 300mm and 385mm tunnel diameter
- Upgrade kits are available for most SP series thrusters with special adaptors
Sealed and lifetime lubricated gearleg
Sealed gearleg with long-life "mechanical" seal where highly polished ceramic and carbon surfaces form the only moving sealing surfaces, ensuring protection against damaging water intrusion into the gear leg. Pre-filled with special gear oil for lifetime lubrication.
- "Mechanical" seals with surfaces of ceramic and carbon for ultimate security against water intrusion
Twin Propellers
The twin propeller system can give more thrust than a single propeller system in the same tunnel diameter. This is our choice for our mid-range models where high thrust is required in a small tunnel diameter. Due to the compact design and high performance, the twin models have become the thrusters of choice among boat builders around the world.
Galvanic Separation
The gearhouse / drive legs of most Side-Power DC Electric thrusters are now fully galvanically isolated / separated from the electric motor and motor bracket. This ensures that even if there is an accidental short circuit or a current leak for other reasons, the immersed parts are not effected as they could be with direct electric contact.
- Achieved by composite bushings around the bolts and beneath the washers and a bushing in the motor bracket electrically isolating the drive housing from the motor bracket.
- Available on DC electric models with flexible couplers only, where the flexible coupler provides galvanic separation of the motor and gearleg shaft.
SIDE-POWER SE150/215T 24V User Manual
